1. Product Features
(1) Use a rationally designed and innovative crawler-type hydraulic down-the-hole drilling rig with a simple design, and it is used in conjunction with a two-stage screw-type high-pressure air compressor, which is more economical.
(2) The structure is simple and compact, and the fuel consumption is low. During maintenance and repair, there is no need to climb up and down, which is convenient and safe.
(3) Applicable to quarries, limestone mines and open-pit mines, building foundation excavation, rock drilling operations in water conservancy, power station, construction, transportation and construction projects, etc., to provide you with a set of safe and effective large aperture solution.
(4) Powerful and excellent performance:
1. Two sets of walking positioning control panels;
2. Reliable and simple hydraulic system;
3. Clean working environment;
4. High torque rotary motor;
5. Integrated operation panel with reasonable layout;
6. Two-stage dry dust collection device;
7. Powerful hydraulic traveling mechanism;
8. Walking control system with humanized design;
9. Low fuel consumption;
10. Superior performance;
11. High-strength propulsion beam and high-torque swivel head;
12. Convenient operation;
2. Product advantages
Powerful travel motor, flexible mobility, high climbing ability
The compact design of crawler-type hydraulic down-the-hole drilling rig, its safe, flexible, stable chassis frame, powerful travel motor and suspension crawler ensure flexible mobility, high climbing ability and is very unique among drilling rigs of the same level. outstanding.
the
3. After-sales service
Kongshan Heavy Industry promises to provide assistance services to customers. When it is necessary to provide assistance, we will ensure that the response within 1 hours . And a variety of care services: including maintenance period reminder service, post-warranty investigation return visit service, opinion and suggestion collection return visit service, whole machine commissioning reminder service before operation, whole machine maintenance reminder service after operation, whole machine preservation technical support service during idle period, etc. .

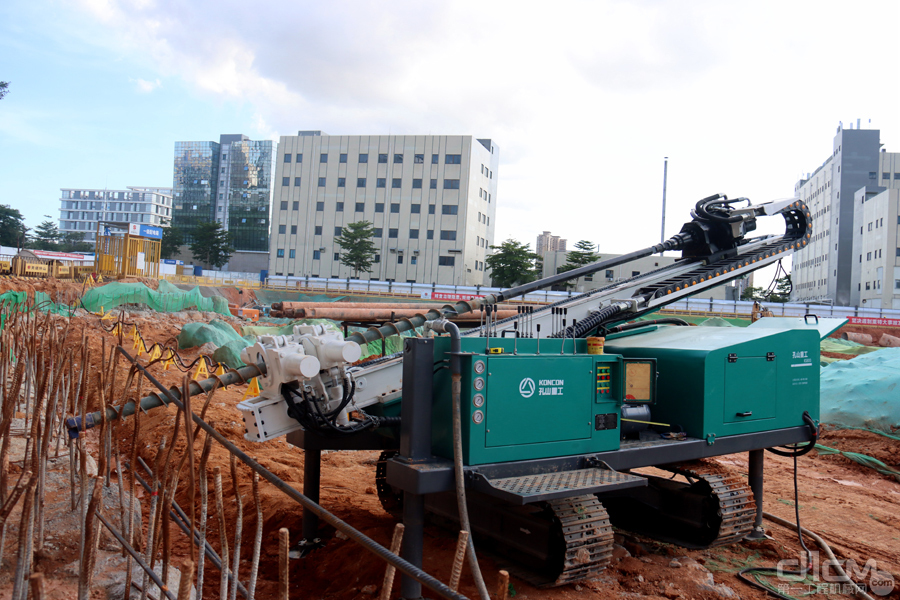

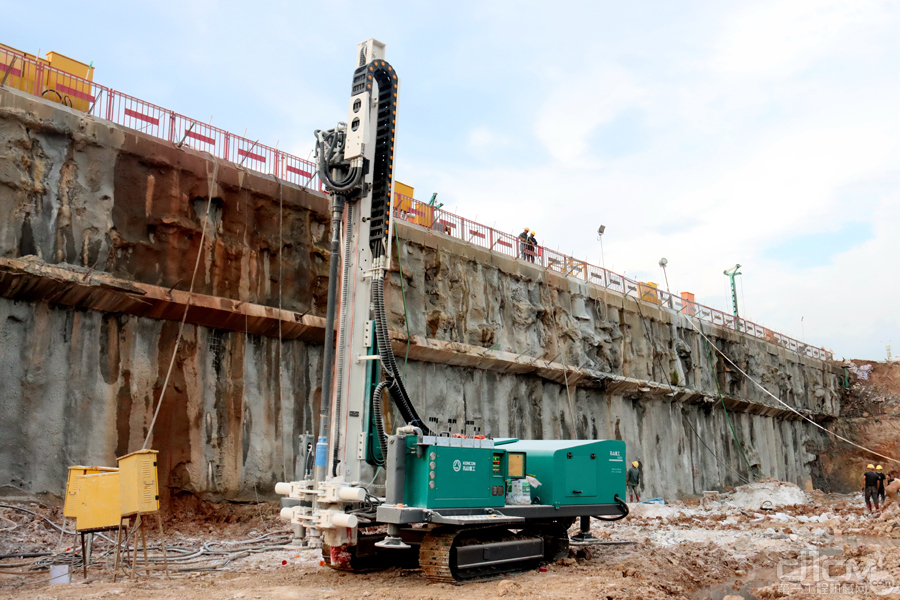

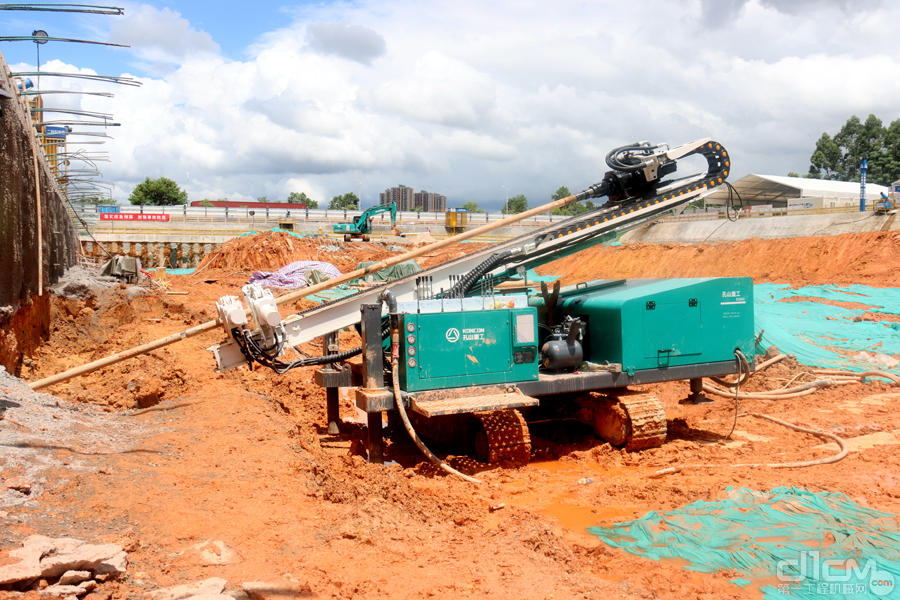

KS800
履帶式錨桿鉆機
CRAWLER ANCHOR DRILL RIG
技術參數 Technical Parameters
使用信息 Use information
鉆孔直徑(mm)： ø115~325 Drilling diameter (mm) : ø115-325
鉆孔最大深度(m)： 200 Maximum drilling depth (m) 200
鉆桿直徑(mm)： 4)76/4)89/(1)102/4)114 Drill rod diameter (mm) 4)76/(t)89/01O2/(t)114
動力頭 Power head
輸出轉速(r/min)： 0-170 Power head output speed (r/min) 0-170
輸出扭矩(N.m)： 7350 Power head output torque (N.m) 7350
油缸驅動的推進梁 Propulsion beam driven by cylinder
一次推進行程(mm)： 3600 One-time advancing stroke (mm) 3600
水平鉆孔高度(mm)： 2750 Horizontal drilling height (mm) 2750
夾桿器最大(mm)： 200 Maximum clamp lever (mm) 200
推8梁補償行程(mm)： 1260 Propelling beam compensation stroke (mm) 1260
最大提升力(T)： 6 Maximum Lifting force (T) 6
最大推進力(T)： 3.3 Maximum thrust (T) 3.3
最快提升速度(M/min)： 29 The fastest lifting speed (M/min) 29
最快推進速度(M/min)： 53 The fastest advancing speed (M/min) 53
回轉馬達左右(。度)： 180 Whole machine power (KW) 180
電動機 Electric motor
整機功率(KW)： 55+18.5 Whole machine power (KW) 55+18.5
輸入電壓(V)： 380 Input voltage (V) 380
底盤 Chassis
離地高度(mm)： 335 Height of chassis from ground (mm) 335
運輸尺寸 Transport size
重量(T)： 7.9 Machine weight (T) 7.9
長x寬x高(M)： 6.3x2.2x2.6 Transport size length x width x height (M) 6.3x2.2x2.6
