KS168

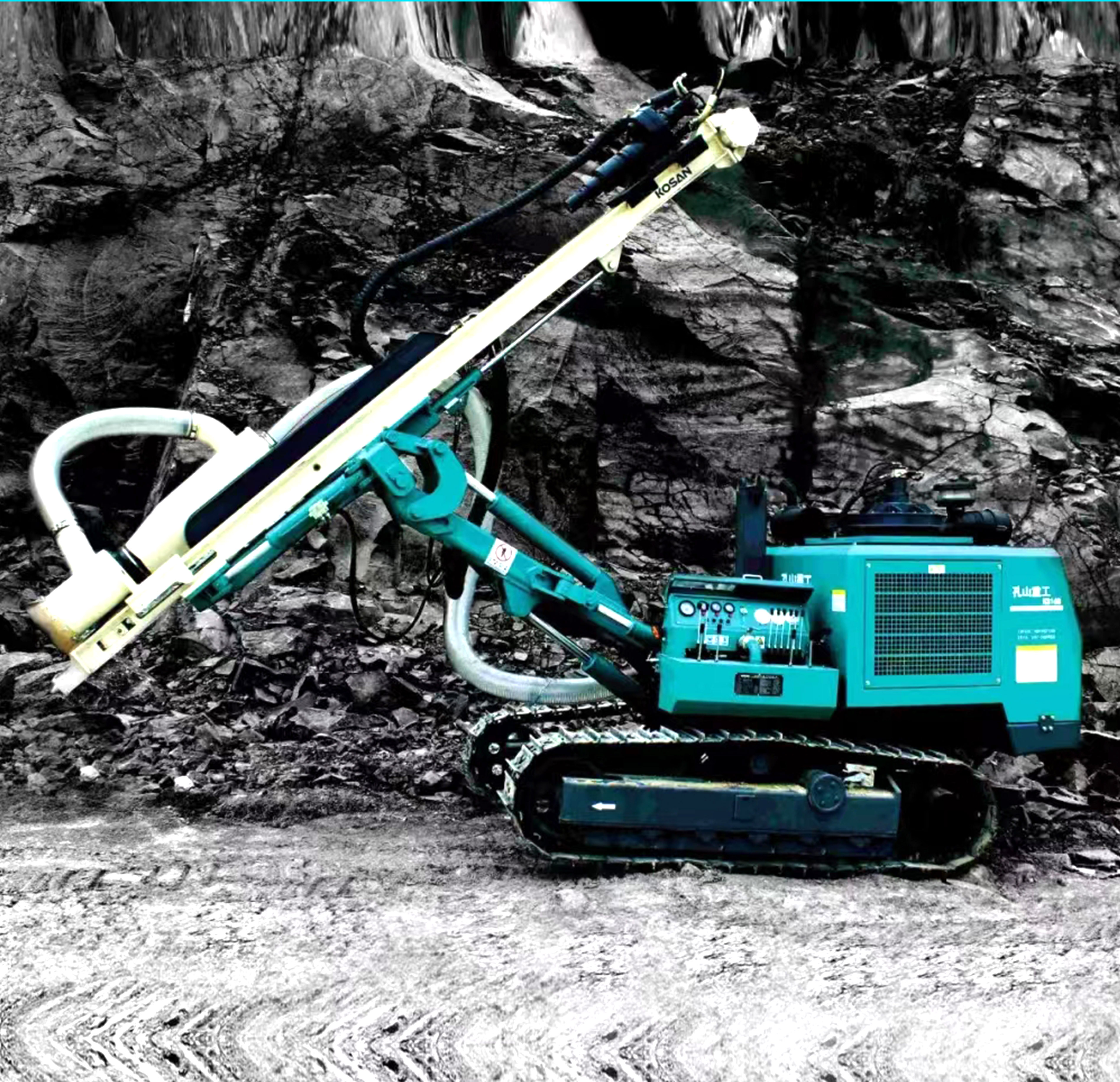

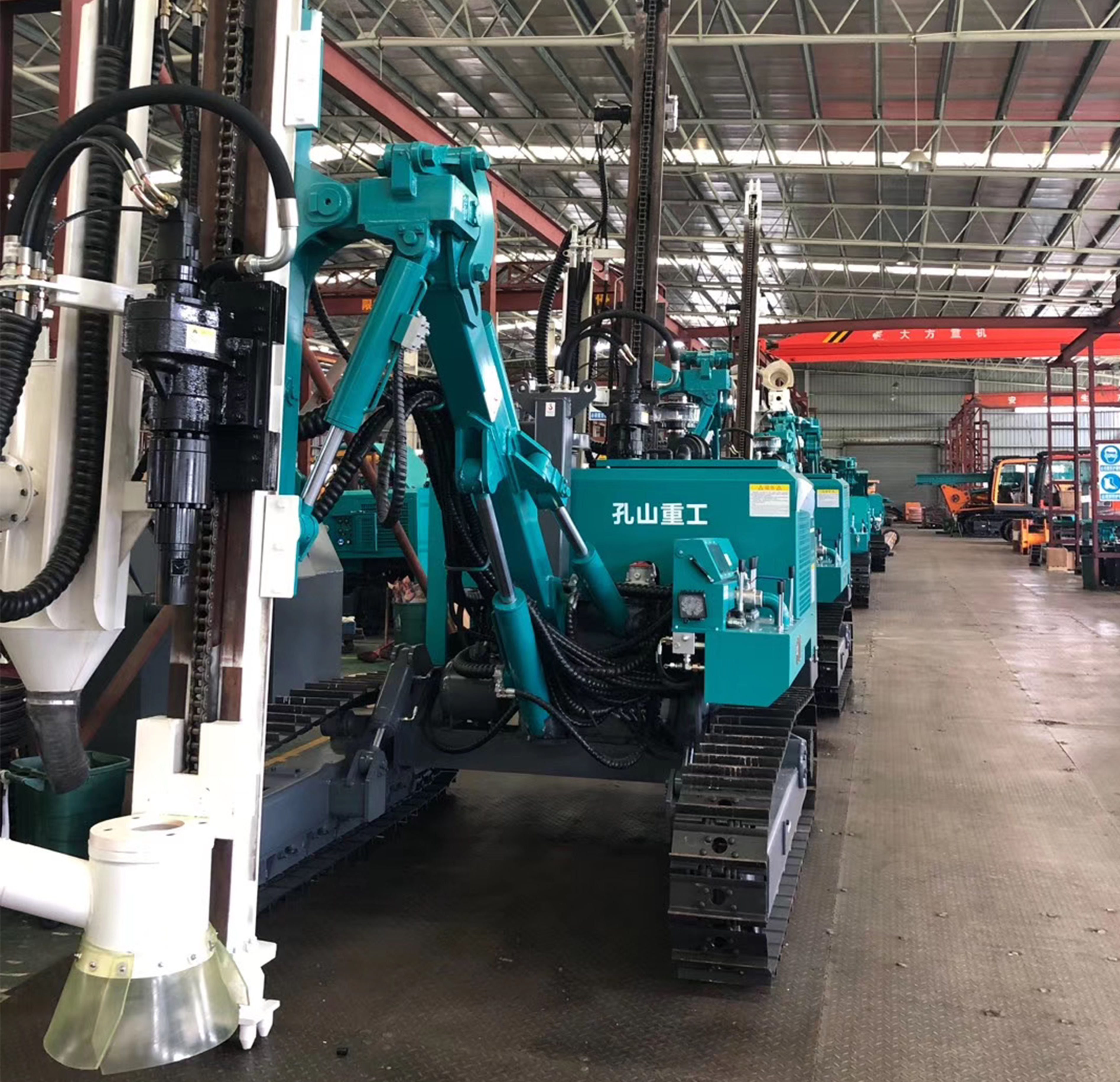

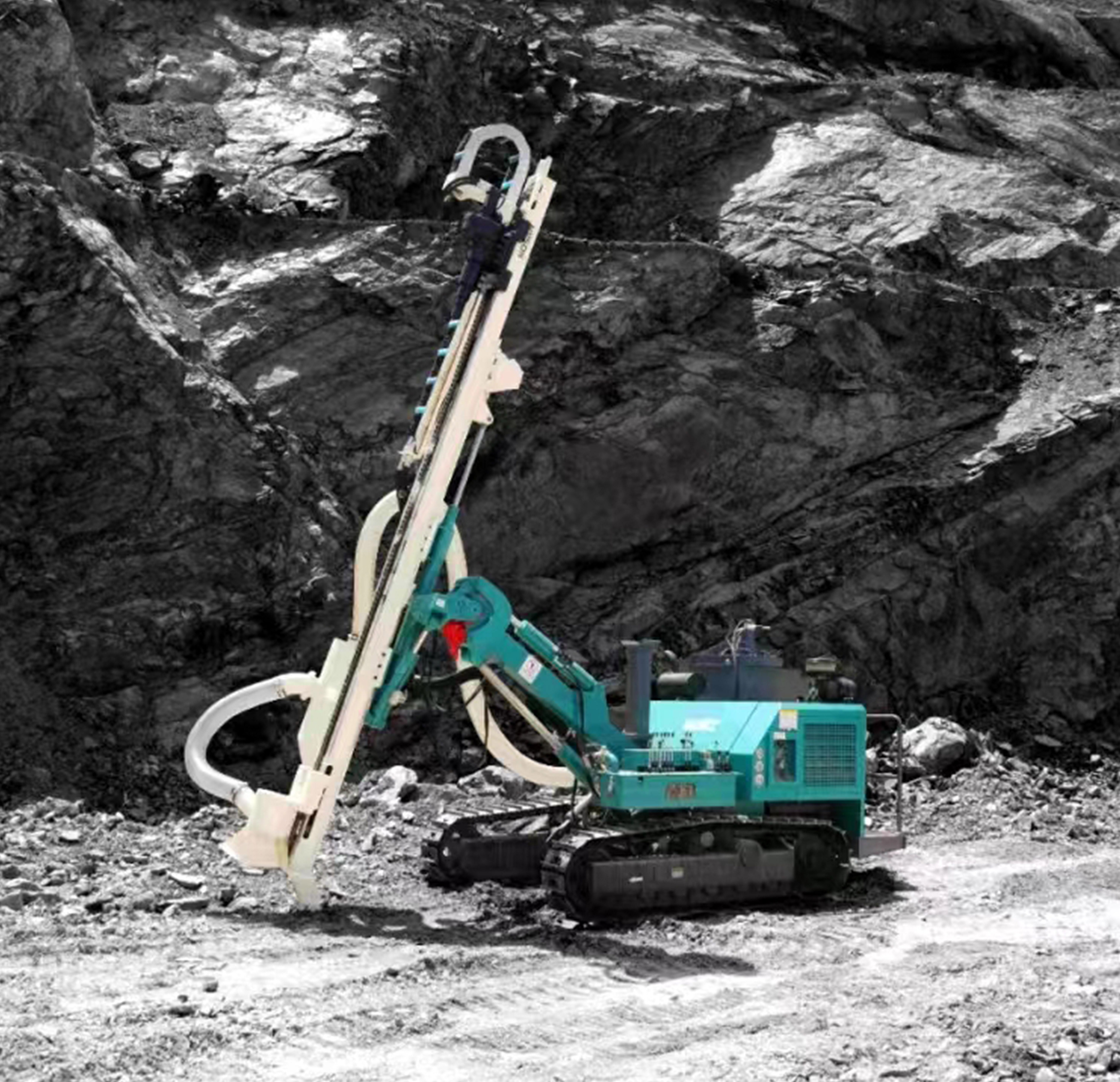

KS168 Crawler DTH drilling rig

OnLine

TEL : +8618029255858

1.  Product Features



(1) Use a rationally designed and innovative crawler-type hydraulic down-the-hole drilling rig with a simple design, and it is used in conjunction with a two-stage screw-type high-pressure air compressor, which is more economical.



(2) The structure is simple and compact, and the fuel consumption is low.  During maintenance and repair, there is no need to climb up and down, which is convenient and safe.



(3) Applicable to quarries, limestone mines and open-pit mines, building foundation excavation, rock drilling operations in water conservancy, power station, construction, transportation and construction projects, etc., to provide you with a set of safe and effective large aperture solution.



(4) Powerful and excellent performance:



1.  Two sets of walking positioning control panels;



2.  Reliable and simple hydraulic system;



3.  Clean working environment;



4.  High torque rotary motor;



5.  Integrated operation panel with reasonable layout;



6.  Two-stage dry dust collection device;



7.  Powerful hydraulic traveling mechanism;



8.  Walking control system with humanized design;



9.  Low fuel consumption;



10.  Superior performance;



11.  High-strength propulsion beam and high-torque swivel head;



12.  Convenient operation;



2.  Product advantages



Powerful travel motor, flexible mobility, high climbing ability

The compact design of crawler-type hydraulic down-the-hole drilling rig, its safe, flexible, stable chassis frame, powerful travel motor and suspension crawler ensure flexible mobility, high climbing ability and is very unique among drilling rigs of the same level.  outstanding.

the

3.  After-sales service



Kongshan Heavy Industry promises to provide assistance services to customers.    When it is necessary to provide assistance, we will ensure that the response within 1 hours .    And a variety of care services: including maintenance period reminder service, post-warranty investigation return visit service, opinion and suggestion collection return visit service, whole machine commissioning reminder service before operation, whole machine maintenance reminder service after operation, whole machine preservation technical support service during idle period, etc. .

KS履帶式潛孔鉆機系列基本參數信息 KS crawler type drill series basic parameter information
參數/型號 Parameters/Model 單位/Unit KS-168 KS-368 KS-669
使用信息/Use information
推薦孔徑范圍 Drilling diameter mm ø90~120 ø105~350 ø105~350
適用鉆管規格 Drill rod diameter mm ø64/76×3000 ø76/89×3000 ø64/76/89×3000
適用沖擊器規格 Applicable impactor specifications " 4"/5" 4"/5"/6"/7"/8"/9"/10" 3"/4"/5"/6"
最大鉆孔深度 Maximum drilling depth m 36
液壓回轉馬達頭/Hydraulic rotary motor head
最快轉速 Maximum speed Rpm 0-100 70 70
最大扭矩 Maximum torque Nm 3000 3680 3680
液壓馬達驅動的推進梁/Propulsion beam driven by cylinder
推進補償 Propulsion compensation mm 1260 1260 1260
推進速度 Propulsion speed M/s 0.6 0.59 0.59
推進行程 Advance stroke mm 3200 3750 3750
推進力最大 Maximum propulsion Kn 12 12 12
拉拔力最大 Maximum drawing force Kn 18 30 30
總長 Total length mm 5060 6300 6300
底盤/Base
行走速度 Walking speed km/h 3 3.5 3.5
履帶架擺動缸角度 Track frame swing cylinder Angle ° ±10 ±12 ±13
底盤離地間隙 Chassis clearance from the ground mm 350 500 320
爬坡能力 Climbing ability ° 35 32 32
鉆臂擺動角度 Swing Angle of drill arm ° 32+18 32+18 32+18
機載發動機/Airborne engine
額定功率 Rated power KW 62.5 73.5/75 73.5/75
柴油發動機 Diesel engine 玉柴發動機/Yuchai engine
運輸尺寸/Transport size
Length mm 6300 6500 6500
Width mm 2200 2240 2310
Length mm 2600 2450 2450
重量 Machine weight KG 5800 7200 6800
基本配置(贈送) 常規工具1套、鉆桿鉗子2把、沖擊器鉗子1把、黃油槍1把、柴油格1個、機油格1個、油水分離器1個、空濾濾芯1套、鉆桿架1對、鉆桿定位套1個、空壓機接頭1個、發動機維修保養手冊1本、吸塵膠皮1套、吸塵短管1條、防塵蓋1個
Basic configuration (complimentary) 1 set of conventional tools, 2 drill pipe pliers, 1 impactor's pliers, 1 butter gun, 1 diesel cell, 1 oil cell, 1 oil-water separator, 1 set of air filter element, 1 pair of drill pipe holder, 1 drill pipe positioning sleeve, 1 air compressor joint, 1 engine maintenance manual, 1 set of vacuuming rubber, 1 vacuuming short pipe, 1 dust cover.
