Englishlocation：Home > Products > Other accessories > KS250P-KS500P Hydraulic Crushing hopper<

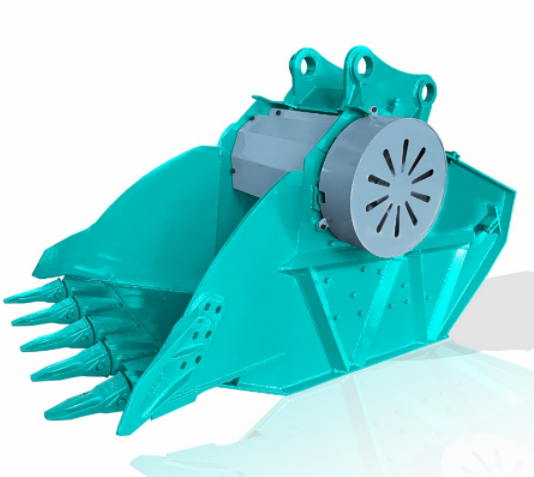

The hydraulic crushing hopper is one of the accessories used on the excavator. It can quickly crush inert engineering materials into valuable engineering materials. The crushing range of the hydraulic crushing hopper includes but is not limited to the following materials: concrete, bricks, pebbles, ore, asphalt, marble, gypsum, etc.
| Model | Unit | KS-250P | KS-350P | KS-500P |
| Matching type | T | 20-25 | 26-35 | 36-50 |
| Net weight | T | 2.68 | 3.85 | 5.43 |
| Weight (including connecting frame) | T | 2.85 | 4 | 5.65 |
| Hopper capacity | m³ | 0.65 | 0.85 | 1.15 |
| Working pressure | Mpa | 28-32 | 28-32 | 28-32 |
| Motor consumption | ML/R | 90 | 125 | 180 |
| Working Traffic | ML/R | 160-180 | 160-240 | 240-300 |
| Spindle speed | RPS | 380 | 380 | 360 |
| Production Capacity | T/H | 15-45 | 20-60 | 30-80 |
| Feeding | mm | 400-750 | 450-900 | 450-1300 |
| Feeding/discharging | mm | 20-120 | 20-120 | 20-140 |
| Dimensions(Length*width*height) | mm | 2300*1140*1500 | 2300*1300*1580 | 2350*1750*1700 |
