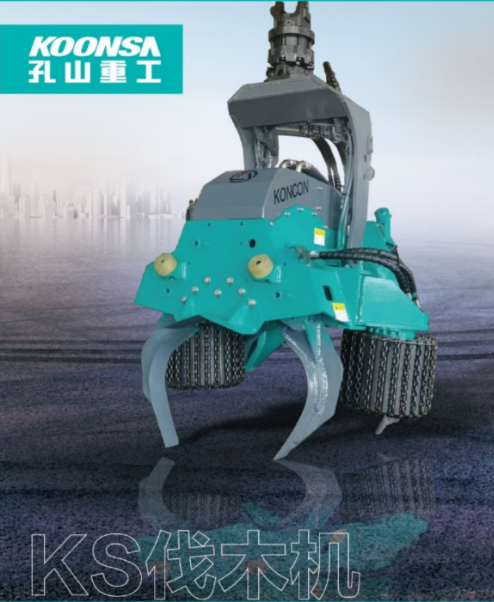

A Harvester head is a machine used to cut down and harvest trees. The working principle of a harvester head is to move the blade or chain saw along the tree in an inclined or horizontal direction through a mechanical or hydraulic system to cut the trunk. The hydraulic system provides power with better control and precision, cutting and cutting trees into appropriate sizes in a fast and efficient manner, and can operate at different heights and positions. It provides convenience for forestry, construction, wood industry and other fields. When using a feller, be sure to pay attention to safety matters and follow the operating procedures to improve work efficiency while ensuring your own safety.
Model | Unit | KS-07 | KS-08 | |
Motor type | Rated power | KW | 55 | 75 |
Rexroth A2FE | Maximum rotational speed | R/min | 2500 | 2500 |
Transport motor | Maximum output torque | kn | 0-95 | 95 |
Rotational speed | R/min | 60 | 130 | |
Transport wheel | Iron wheel, rubber wheel | PCS | 2 | 3 |
Cylinder working pressure | Maximum pressure | KG | 220 | 250 |
Grasping pressure | KG | 130 | 150 | |
Transport pressure | KG | 160 | 180 | |
Rotary hydraulic motor | Lifting weight | KG | 5500 | 6000 |
Rotation speed | m/min | 80 | 80 | |
Rotational torque | n.m | 800 | 800 | |
Hydraulic system | Working pressure | KG | 220 | 250 |
Hydraulic system | Working Traffic | L/Min | 190 | 260 |
Circuit system | Working voltage | dcv | 24 | 24 |
Maximum opening diameter | mm | 650 | 750 | |
Maximum cutting diameter | mm | 400 | 550 | |
Supply Speed | m/s | 3.5-4.5 | 3.5-5 | |
Weight | KG | 860 | 1080 | |
Matching excavator | T | 12-15 | 18-20 | |
Dimensions | mm | 1250*1380*1780 | 1250*1420*1860 |
